Engineered using unique, dual Nickel Titanium wires and independent interproximal separators, DualForce provides significant and balanced separation force (mesial/distal) and an excellent matrix/tooth seal. Using Nickel Titanium wire renders the DualForce Rings resistant to fatigue so you will have consistent separation force throughout the life of the ring.
DualForce™ Molar & Pre-Molar Rings
- Description
- Clinical Techniques
- Resources
- Videos
- Instructions For Use/SDS
- FAQ
- Testimonials
- Product Configurations
Description
Dual rings apply balanced separation force on mesial and distal contact areas.
Independent articulating interproximal separators for improved tooth seal and adaptation.
Angle of interproximal separting prongs match tooth morphology for:
● Significantly more ring stability
● Tighter matrix band seal
● Pop-off prevention
Dual NiTi wires
● Provide more separation force
● Resist breakage
● Less expansion force required
Integrated forcep slots.
Non-stick plastic.
- DualForce Rings engage the tooth more firmly and are very stable
- Less hand strain is required to open the rings, yet separation force on the teeth is stronger
- 20° angle placement of Ring increases separation force and prevents cusp and rubber dam clamp interference
- Interproximal separators are made with non-stick, durable plastic – preventing composite and adhesive stick, and breakage
- Ideal for stacking or butterfly placement techniques
Clinical Techniques
Dentistry and Photography Courtesy of Bob Margeas, DDS
Deep Class II pre-molar preparation.
DualForce Punch Pliers pinch and grip the matrix’s occlusal tab allowing for easy placement of the matrix band.
The Active-Wedge tip collapses during the insertion for easy placement, then re-expands when fully seated, regaining full contour for an improved matrix band seal.
DualForce Rings are easy to expand, yet provide more separation force once placed. DualForce Rings adapt intimately in the embrasure area.
Once seated, the DualForce Sectional Matrix System provides a complete gingival seal with a tight vertical seal of the matrix band along with a strong and stable separation force, resulting in less chance of composite flash.

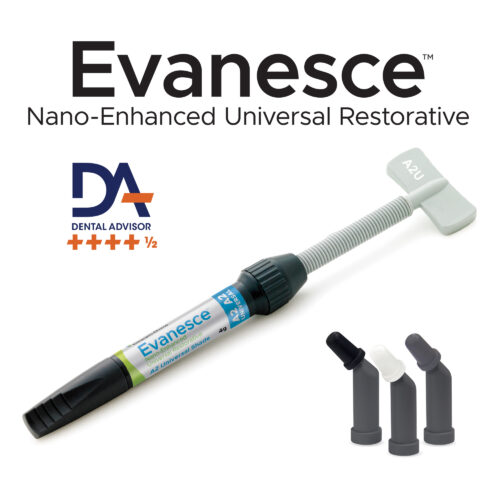

Total-etch, G5 Desensitizer and MPa Max Adhesive provide outstanding bond strength and dentin/enamel seal. Evanesce (shade A1D) Restorative Material is incrementally placed into the preparation.
Once the restoration is fully cured, DualForce Punch Pliers may be used anywhere along the matrix band to perforate it for a secure grip and easy removal.
Diamond impregnanted A.S.A.P. Pre-polisher (10-15 seconds) and Final High Shine polisher (10-15 seconds) quickly results in a beautiful luster.
Final esthetic restoration that mimics natural form and function.
Dentistry and Photography Courtesy of Parag R. Kachalia, DDS
With rubber dam in place (PARA Non-Latex Rubber Dam), pre-op view of wide Class II on first molar requiring replacement.
Ultra-Wrap matrix band in place extending well beyond the proximal line angles. Ultra-Wrap is made of 0.0015” / 38 microns semi-hard stainless steel making it more resistant to crimping during placement.
The Active-Wedge tip collapses during insertion for easy placement, then re-expands when fully seated, regaining full contour for an improved matrix band seal.
Once seated, the DualForce Sectional Matrix System provides a complete gingival seal with a tight vertical seal of the matrix band along with a strong and stable separation force, resulting in less chance of composite flash.
First increment of Evanesce Restorative material adapted to include Ultra-Wrap’s pre-contoured occlusal lip, establishing an ideal rolling marginal ridge.
Evanesce composite adapts to the internal surfaces of the preparation with excellent packability.
Evanesce is easily sculpted with no slumping, efficiently and effectively establishing the ideal occlusal anatomy before the final curing.
Evanesce composite adapts to the internal surfaces of the preparation with excellent packability.
The A.S.A.P. Pre-polisher gently diminishes small surface defects without affecting anatomy.
After just 10-15 seconds of polishing with the A.S.A.P. Final High Shine Polisher, the final esthetic restoration with an optimal proximal contact.
Resources

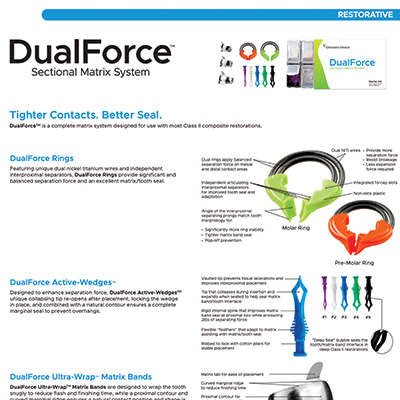

DualForce Sectional Matrix System Product Sheet
Click here to view
“Ask the Expert: An Interview with Nate Lawson, DMD, PhD
on Sectional Matrix Systems” by Nate Lawson, DMD, PhD
Click here to view

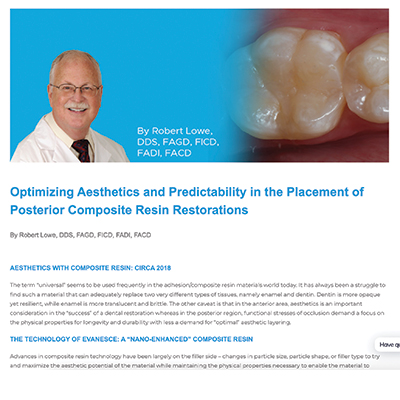

Optimizing Aesthetics and Predictability in the Placement of Posterior Composite Resin Restorations by Robert Lowe, DDS, FAGD, FICD, FADI, FACD
Click here to view
“Class II Restoration Protocol Using a Sectional Matrix System” by Dr. Devin McClintock, DDS
Click here to view
Simplifying the Class II Composite with Bulk Fill: Efficiency Without Compromise” by Marcos Vargas, BDB, DDS, MS and Kayla E. Erps, Senior Dental Student, University of Iowa
Click here to view

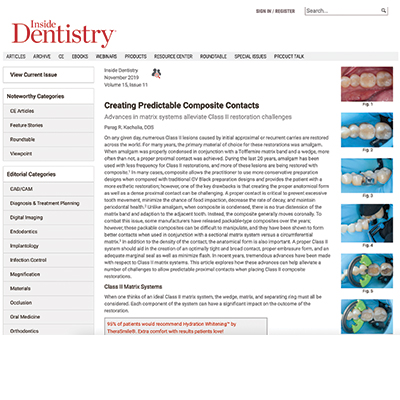

“Creating Predictable Composite Contacts” by Dr. Parag R. Kachalia in Inside Dentistry.
Click here to view
Videos
DualForce Rings
Michael Miyasaki, DDS introduces the DualForce™ Sectional Matrix System.
Marc Geissberger, DDS, MA, BS, CPT explains why he prefers DualForce™ Sectional Matrix System for his Class II restorations.
Marc Geissberger, DDS, MA, BS, CPT Demonstrates DualForce™ Ring Placement
Instructions For Use/SDS
Click here to view the DualForce Sectional Matrix System Instructions For Use/SDS.
FAQ
How do I prevent the DualForce ring from popping off the tooth?cciwp2019-04-08T15:22:49-04:00
Ensure that the DualForce Ring is fully seated by gently pressing down on the plastic separating prongs (never directly on the dual NiTi rings) once it is placed on the tooth.
How do I prevent the plastic on the rings from breaking?cciwp2019-04-08T15:23:49-04:00
Ensure that the proper sterilization temperature and method are being used.
It is recommended to use a steam autoclave at 273oF only.
Ensure that the ring is expanded sufficiently to avoid premature contact of the separating prongs with the tooth as it is being seated.
Are there any tips for placement?cciwp2019-04-08T15:24:12-04:00
- Approach the tooth with the expanded ring at a 45o angle.
- Place the separating prongs as close as possible to the gingival crest and gently press down on the plastic to ensure that it is fully seated. The dual NiTi rings themselves should never be manipulated as this will cause the separating prongs to shift.
- DualForce Rings are designed to sit at a 20o angle to allow for nesting of a second ring, to avoid a rubber dam clamp, and to clear an adjacent prominent cusp.
Testimonials
DualForce is a sectional matrix ring system that intimately adapts the band to the margins of the preparation, eliminating flash and excessive adjustment during finishing.
– Robert Lowe, DDS, FAGD, FICD, FADI, FACD
– Robert Lowe, DDS, FAGD, FICD, FADI, FACD
Product Configurations
Ring 2-Pack Refills:
- 2 x Pre-Molar Ring (Orange)
- 2 x Molar Ring (Green)
- Assorted Pack (1 x Pre-Molar, 1 x Molar)
DualForce Complete Kit: 1 x Pre-Molar Ring (Orange), 1 x Molar Ring (Green), 25 x 4.5mm Matrix Bands, 25 x 5.5mm Matrix Bands, 25 x 6.5mm Matrix Bands, 20 x Active-Wedge #1 (Purple), 20 x Active-Wedge #2 (White), 20 x Active-Wedge #3 (Blue), 20 x Active-Wedge #4 (Green), 20 x Active-Wedge #5 (Black), 1 x Punch Pliers 1 x Ring Forceps
DualForce Starter Kit: 1 x Pre-Molar Ring (Orange), 1 x Molar Ring (Green), 25 x 4.5mm Matrix Bands, 25 x 5.5mm Matrix Bands, 25 x 6.5mm Matrix Bands, 20 x Active-Wedge #1 (Purple), 20 x Active-Wedge #2 (White), 20 x Active-Wedge #3 (Blue), 20 x Active-Wedge #4 (Green), 20 x Active-Wedge #5 (Black)
